| 產品名稱：日本NTS稱重顯示儀表,稱重顯示儀表IND7660,儀表IND7660,IND7660 |
| 產品類型：日本NTS稱重傳感器 |
| 產品編號：IND7660 |
| 產品價格： |
發郵件索取產品資料：[email protected]
 |
|
| |
| |
| |

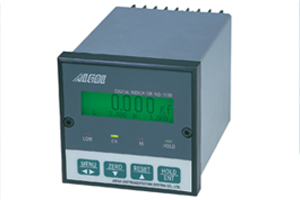

Model: IND 7660
This indicator can be connected with strain gauge type load cell and pressure transducer to show data detected by those transducers. It has various functions to process data, form judgement, and output to outer appliances.
FEATURES
- Functional Digital Calibration
Instead of actual load calibration, this indicator adopts digital calibration by inputting rated voltage output (mV/V).
- Easy to Check Graphic LCD
Easily make settings on the indicator in dialog style by checking messages on the graphic LCD.
- Various Digital Processing
Analog signals from transducers will be effectively converted into digital signals by A/D converter at the rate of 640 times/sec.
- Intelligent Judgement Function
By lighting on the HI, OK, or LOW lamp and proceeding signal output to judge the test result.
|
Range of Gain Adjustment |
Full scale setting of 0.5mV/V~2.5mV/V |
|
Value Display Range |
 10000 |
|
Linearity |
0.05% of F.S. 1digit |
|
A/D Converter |
16 bit 640 times/sec. |
|
LED Lamp |
4 lamps Red (HI, LOW) Green (OK) Yellow (HOLD) |
|
Key Switch |
4 switches ZERO, MENU, RESET, HOLD |
|
Comparator Function |
Top/bottom value setting |
|
Data Hold Function |
Peak, bottom, signal from outer appliances, peak or bottom data in limited area, limited period top point or change point |
|
Output Signal |
Open collector O.L, HI, OK, LOW |
|
Input Signal |
Contact point or open collector ZERO, HOLD, RESET |
|
Outer Power Supply |
DC24V for input/output signal isolation |
|
Optional Models |
Indicator unit with RS-232C interface
Indicator unit with analog output 4-20mA |
|
Power Supply |
AC 85V ~ 265V |
|
Operation Condition |
Temperature: 5 ~ 40 oC
Humidity less than 85%RH (No bedewing) |
|
Outer Dimension |
96W x 96H x 155D mm (Pane cut 92 x 92mm) |
|
Weight |
Approx. 900g |
 The above specifications are subject to change without notice. |
